What Is a Token Ring? Understanding the Classic Network Topology

What Is a Token Ring? Token Ring is a type of local area network (LAN) technology that uses a special data packet called a token to control access to the network. Developed and popularized by IBM in the 1980s, Token Ring was once widely used in business and enterprise environments before Ethernet became the dominant networking standard.

Understanding how Token Ring works provides valuable insight into the evolution of modern computer networks.

What Is a Token Ring Network?

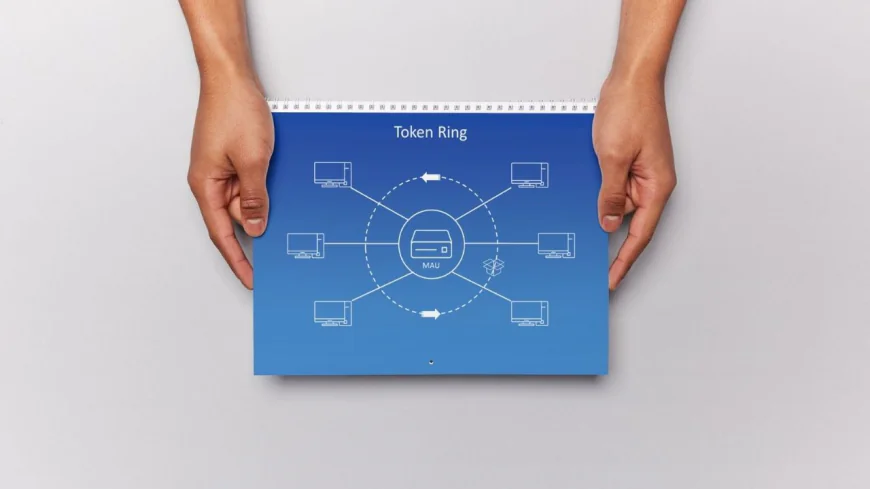

A Token Ring network connects computers and devices in a logical ring structure. Data travels around the network in one direction, passing from one device to another until it reaches its intended destination.

Unlike traditional networks where multiple devices may attempt to transmit data simultaneously, Token Ring uses a controlled method that helps prevent data collisions.

The key element of this system is the token.

How Does Token Ring Work?

In a Token Ring network, a small control packet known as a token continuously circulates around the ring.

Token Passing Process

When a device wants to send data, it must first receive the token.

Once the token arrives, the device attaches its data and destination information before transmitting the packet through the network.

After the data reaches its destination, the token is released and continues circulating so another device can use it.

This process ensures that only one device transmits data at a time.

Why Was Token Ring Important?

During the early years of computer networking, network congestion and data collisions were common challenges.

Token Ring addressed these issues by providing an organized communication system. Since only the device holding the token could transmit data, collisions were virtually eliminated.

This predictable performance made Token Ring attractive for business environments that required stable and reliable network communication.

Advantages of Token Ring

Reduced Data Collisions

The token-passing mechanism prevents multiple devices from transmitting simultaneously, reducing the likelihood of collisions.

Predictable Network Performance

Because network access is controlled, performance remains more consistent even as traffic increases.

Efficient Data Transmission

Token Ring networks can manage heavy traffic efficiently due to their structured communication method.

Reliable Operation

The controlled nature of token passing helps maintain orderly communication between connected devices.

Disadvantages of Token Ring

Higher Cost

Token Ring equipment was generally more expensive than Ethernet hardware.

More Complex Setup

Installation and maintenance often required specialized knowledge and equipment.

Slower Adoption

As Ethernet technology improved and became more affordable, organizations increasingly favored Ethernet over Token Ring.

Limited Modern Use

Today, Token Ring has largely disappeared from modern networking environments.

Token Ring vs Ethernet

One of the biggest differences between Token Ring and Ethernet is how devices gain access to the network.

Token Ring uses a token-passing system that grants transmission rights to one device at a time.

Ethernet allows devices to communicate using different access methods and has evolved to provide significantly higher speeds and lower costs.

As Ethernet technology advanced, it became the preferred networking standard for businesses and consumers worldwide.

Where Was Token Ring Used?

Token Ring networks were commonly found in:

• Corporate offices
• Financial institutions
• Educational organizations
• Government agencies
• Enterprise data environments

Many organizations valued the technology because of its reliability and predictable network behavior.

Why Did Token Ring Decline?

Although Token Ring offered several technical advantages, Ethernet eventually became more popular due to its lower cost, simpler implementation, and rapidly increasing speeds.

As Ethernet standards continued to improve, most businesses migrated away from Token Ring networks.

Today, Token Ring is primarily studied as part of networking history and computer science education.

What Is a Token Ring?

What Is a Token Ring? It is a networking technology that uses a token-passing mechanism to control how devices communicate within a local area network. By allowing only the device holding the token to transmit data, Token Ring minimizes collisions and provides predictable performance. While largely replaced by Ethernet in modern networks, Token Ring remains an important milestone in the development of computer networking technology.
